Description

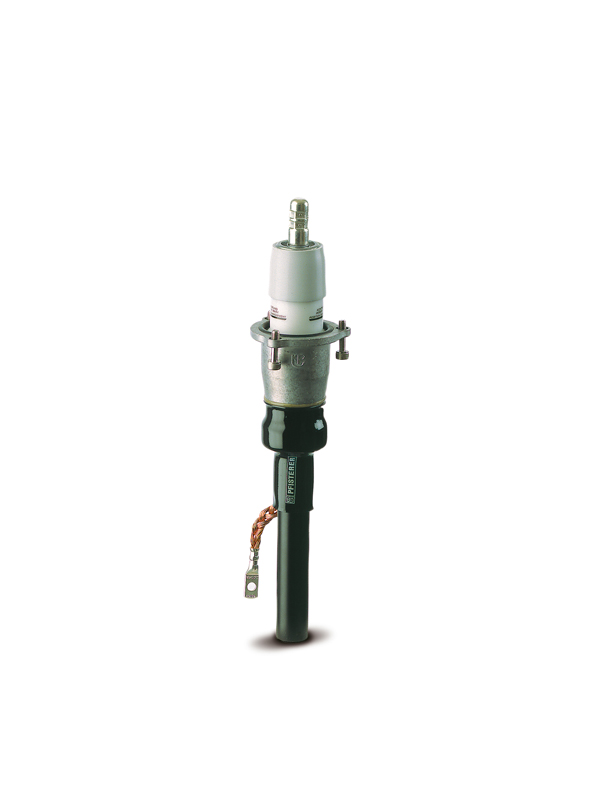

CONNEX – Size 3 Pfisterer Termination – 33kV
The MV-CONNEX range is ideal for use in ring main units, Circuit breaker switchgear, High voltage motors, Transformers, Capacitors, Transducers and sealing boxes. The connectors on the equipment side are designed to meet EN50180, 50181 and DIN47637. Pfisterer plugs are suitable for all kinds of insulated plastic cables. As well as a wide range of standard types there are also customer specific versions for every cable type.
- for RM-conductor (stranded circular) of aluminium or copper
- for single core cable with copper wire shield without armouring
- with sealing system (bell flange seal and shrink tubing)
- for indoor and outdoor applications
- not soil-resistant and not offshore-proof
- Packaging unit: set with three separable connectors
- Voltage taps that are not connected to a voltage display system, must be earthed for size 3-S
- rotatable flange
- offshore version on request
- 3-core version on request
- Also available in 11 and 24kv versions- call sales office for further details
