HDSTR -Stainless Steel Strap Cleat – Cyclone II/III

Data/Specifications

Cyclone II Part NumberIntermediate Restraint StrapCyclone III Part NumberIntermediate Restraint StrapCable O/D Range (Single)Cable O/D Range TrefoilCable Range O/D Quad
2CYC0240342STR0240343CYC0240343STR02403435-56mm24-34mm21-29mm
2CYC0300412STR300413CYC0300413STR03004145-60mm30-41mm26-35mm
2CYC0370472STR0370473CYC0370473STR0374755-69mm37-47mm32-40mm
2CYC0430542STR0430543CYC0430543STR04305464-80mm43-54mm37-46mm
2CYC0500602STR0500603CYC0500603STR05006075-88mm50-60mm43-51mm
2CYC0560672STR0560673CYC0560673STR05606783-99mm56-67mm49-57mm
2CYC0630732STR0630733CYC0630733STR06307394-108mm63-73mm55-62mm
2CYC0690802STR0690803CYC0690803STR069080103-118mm69-80mm60-68mm
2CYC0720852STR0720853CYC0720853STR07208572-85mm
2CYC0820952STR0820953CYC0820953STR08209582-95mm
2CYC0921052STR0921053CYC0921053STR09210592-105mm
2CYC1021152STR1021153CYC1021153STR102115102-115mm
2CYC1121252STR1121253CYC1121253STR112125112-125mm
2CYC1221352STR1221353CYC1221353STR122135122-135mm
2CYC1321452STR1321453CYC1321453STR132145132-145mm
SKU: 213867533f8a Category:

Description

HDSTR -Stainless Steel Strap Cleat – Cyclone II/III

The CMP Products Cyclone I Strap cable cleat is a metallic cable cleat consisting of a fabricated lightweight aluminium base and a stainless steel strap which have been designed, constructed, and tested in accordance with the International Standard ‘cable cleats for Electrical Installations’ IEC 61914:2009. The Cyclone I Strap cable cleat ensures the retention and securing of cables, whilst preventing damage to the cable when in normal operation, or in the event of a short circuit.

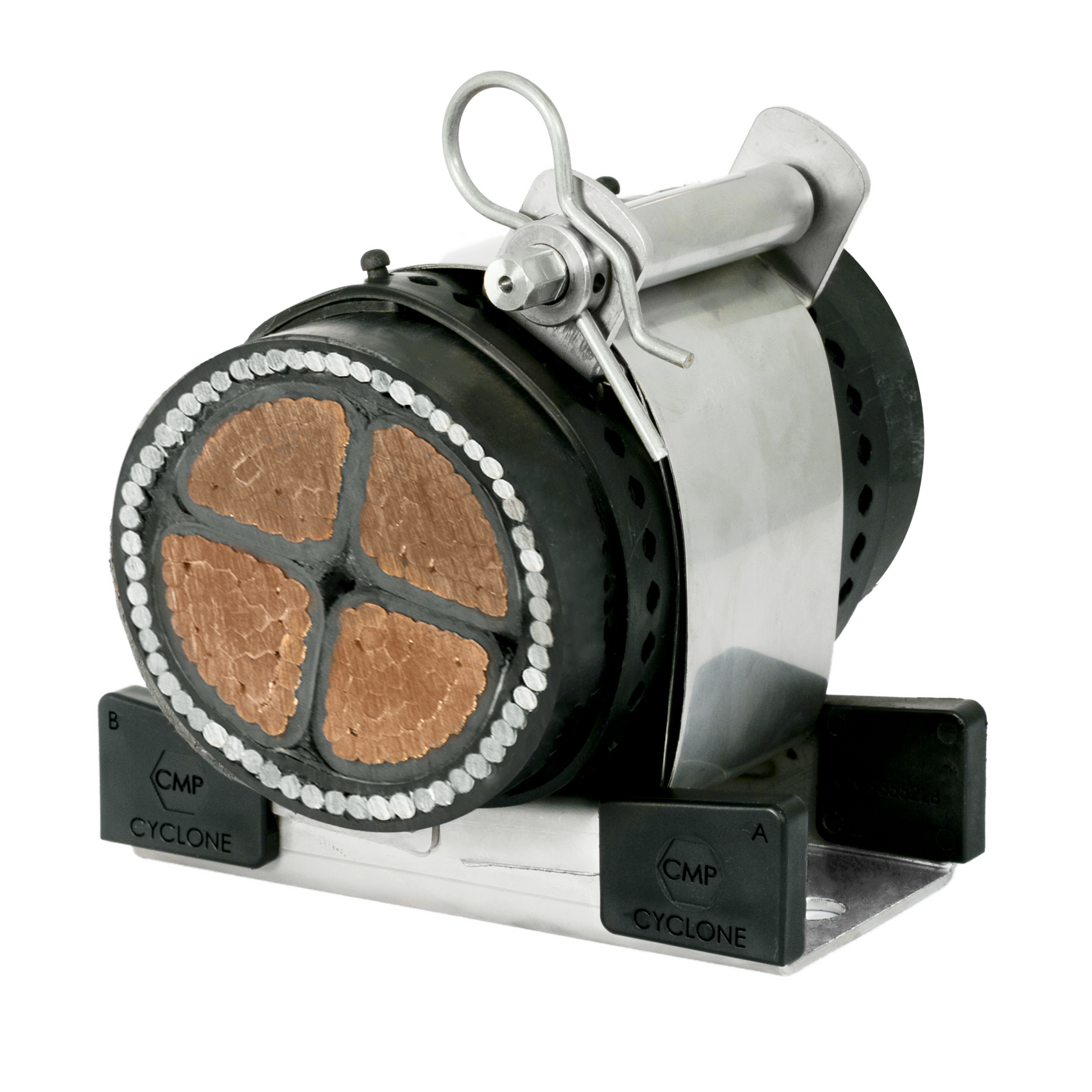

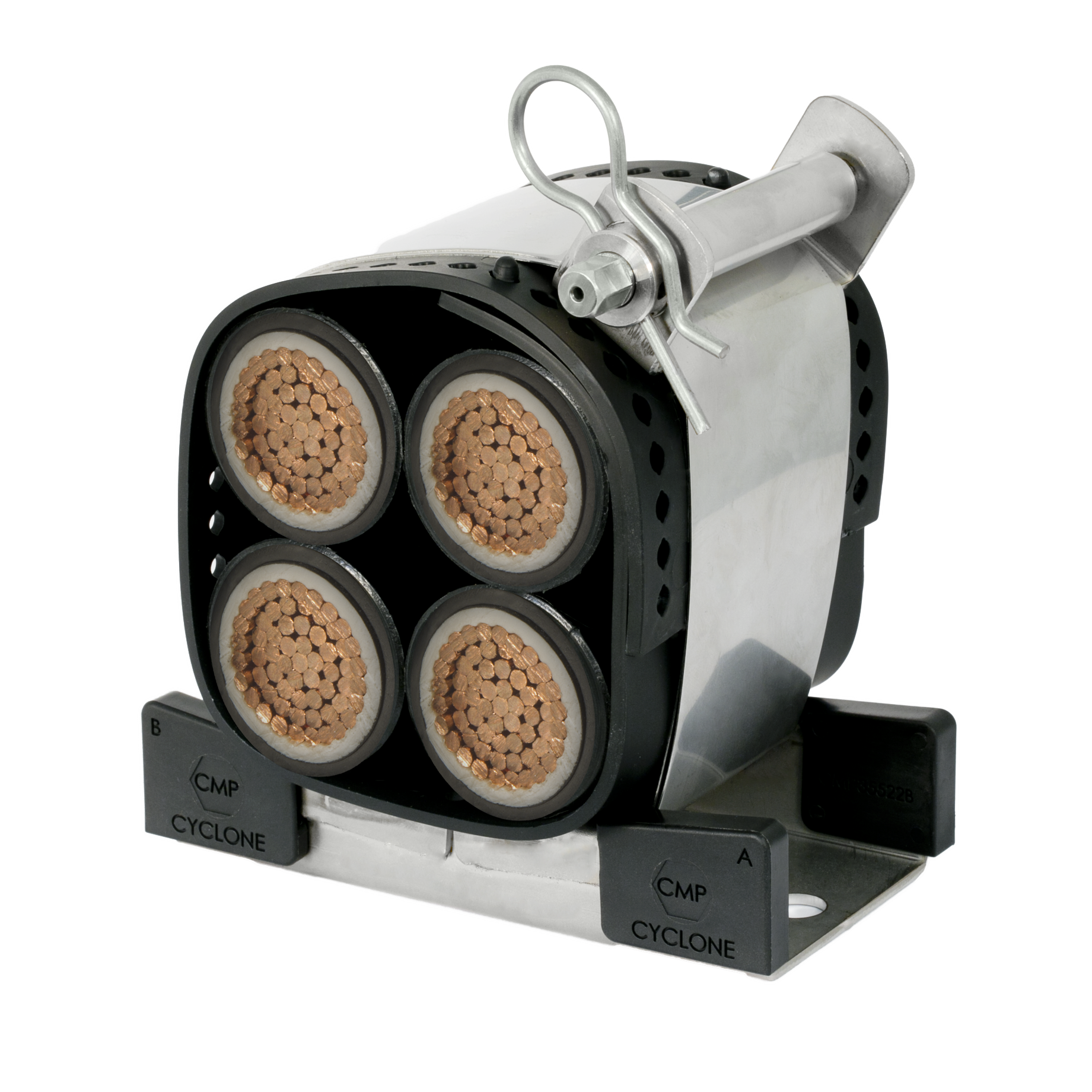

The cable cleats allow a wide range of applications including miscellaneous formations. They have an exceptional overlapping range and give the end user more flexibility when compared to more rigid cable cleats on the market. Each cleat is capable of securing various cable formations, such as single cable (multicore) or single cable in parallel formation, trefoil formation, and quad formation. Suitable for single cable applications in diameters of 36mm to 118mm in 8 sizes, in trefoil formation from diameters of 24mm to 145mm in 15 sizes and quad formation from 21mm to 68mm in 8 sizes.

The Cyclone I bases are manufactured from 5000 series aluminium, making the base lightweight, easy to handle and corrosion resistant. The Cyclone straps are manufactured in 316L stainless steel, providing excellent corrosion resistance, and the tensioned straps act as a coil during short circuit conditions to restrain the cable. The Cyclone strap wraps around the angled Cyclone I aluminium base ensuring the cables are always kept central. The strap is fastened to a stainless steel pin with a hexagon shaped head at one end allowing fast, easy installation via the use of a ratchet, power tool or other suitable mechanical device.

The Cyclone I Aluminium Strap cable cleat has one M12 and two M10 fixing clearance holes within each base, allowing versatile installation and enabling the product to be secured to a variety of mounting surfaces. Due to the design of the Cyclone, the cables do not need to be lifted and placed in to the cable cleat, instead the cables are placed on to the Cyclone bases and the Cyclone straps then wrap around the cables securing them to the mounting surface of the Cyclone base.

The Cyclone I Cable Cleats and Cyclone intermediate straps come with Low Smoke & Fume (LSF), Zero Halogen (LS0H) and Phosphorus Free liners as standard, helping to restrain the cables within vertical applications, providing a layer of protection between the cable sheath and the Cyclone stainless steel strap and base during normal operation where thermal elongation of cables occurs. The liners also prevent the cable from chafing on any mounting surface due to differential movements such as those found in marine and offshore applications, and protect the cable during short circuit conditions.

The Cyclone Strap is designed to be used as an intermediate restraint (where applicable) between two Cyclone cable cleats to bind cables together giving a cost effective, easy application fixing system. Using the Cyclone I Strap cable cleat and the Cyclone Intermediate Restraint alternatively will dramatically reduce installation time and cost, when compared to alternative cable cleat only solutions.

  • Third party certification to IEC 61914:2009
  • 316L stainless steel base with stainless steel strap
  •  24 – 145mm in 15 sizes for trefoil formation /application
  • 36 – 118mm in 8 sizes for multicore cables or single core parallel formations
  • 21 – 68mm in 8 sizes for quad formations
  • Cyclone II short circuit rating of 151kA peak fault
  • Cyclone III short circuit rating of 180kA peak fault
  • Operating temperature -40°C to +60°C
  • Low Smoke & Fume (LSF) liners as standard
  • Combined single (M12) and two bolt (M10) base fixing design
