Description
High strength copper alloy clamp designed to provide a high quality, low resistance connection between solid circular or stranded conductor and an earth rod.
BS EN 50164-1 Class H, BS 7430

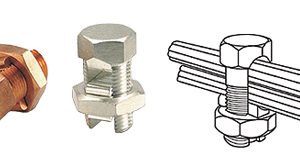

Rod to Cable Clamp (Type G)
Data/Specifications
| Rod Diameter | Maximum Conductor Size | Weight each |
|---|---|---|
| 3/8" or 9.5mm | 6 - 35mm2 | 0.03kg |
| 1/2" or 12.5mm | 16 - 50mm2 | 0.05kg |
| 5/8" or 16mm | 5.2 - 33.6mm2 | 0.06kg |
| 5/8" or 16mm | 16 - 70mm2 | 0.06kg |
| 3/4" or 20mm | 5.2 - 33.6mm2 | 0306kg |
| 3/4" or 20mm | 35 - 95mm2 | 0.06kg |
| 1" or 25mm | 70 - 150mm2 | 0.14kg |
