Description
Earthmet supply a range of different Tower earth clamps to suit different size applications. These are used for bonding copper cable or wire to steel structures.

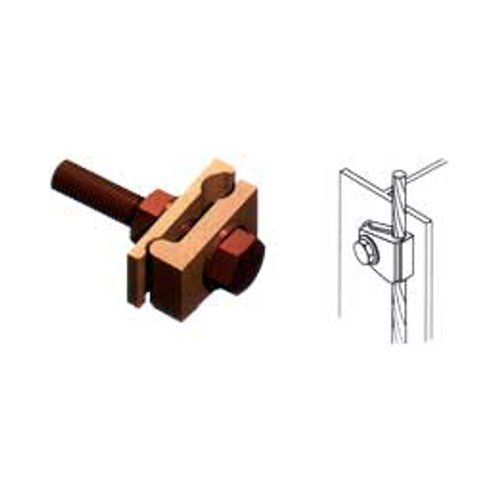

Tower Earth Clamp
Data/Specifications
| Conductor Range | Channel thickness | Bolt Size | Conductor material | Weight each |
|---|---|---|---|---|
| 16-70 mm2 | 10 mm | M10 | Copper | 0.13 kg |
| 70-120 mm2 | 10 mm | M12 | Copper | 0.22 kg |
| 25-50 mm2 | 10 mm | M10 | Copper | 0.08 kg |
| 25-50 mm2 | 10 mm | M10 | Aluminium | 0.05 kg |
| 120-185 mm2 | 10 mm | M12 | Copper | 0.30 kg |
| 185 - 240 mm2 | 10 mm | M12 | Copper | 0.40 kg |
