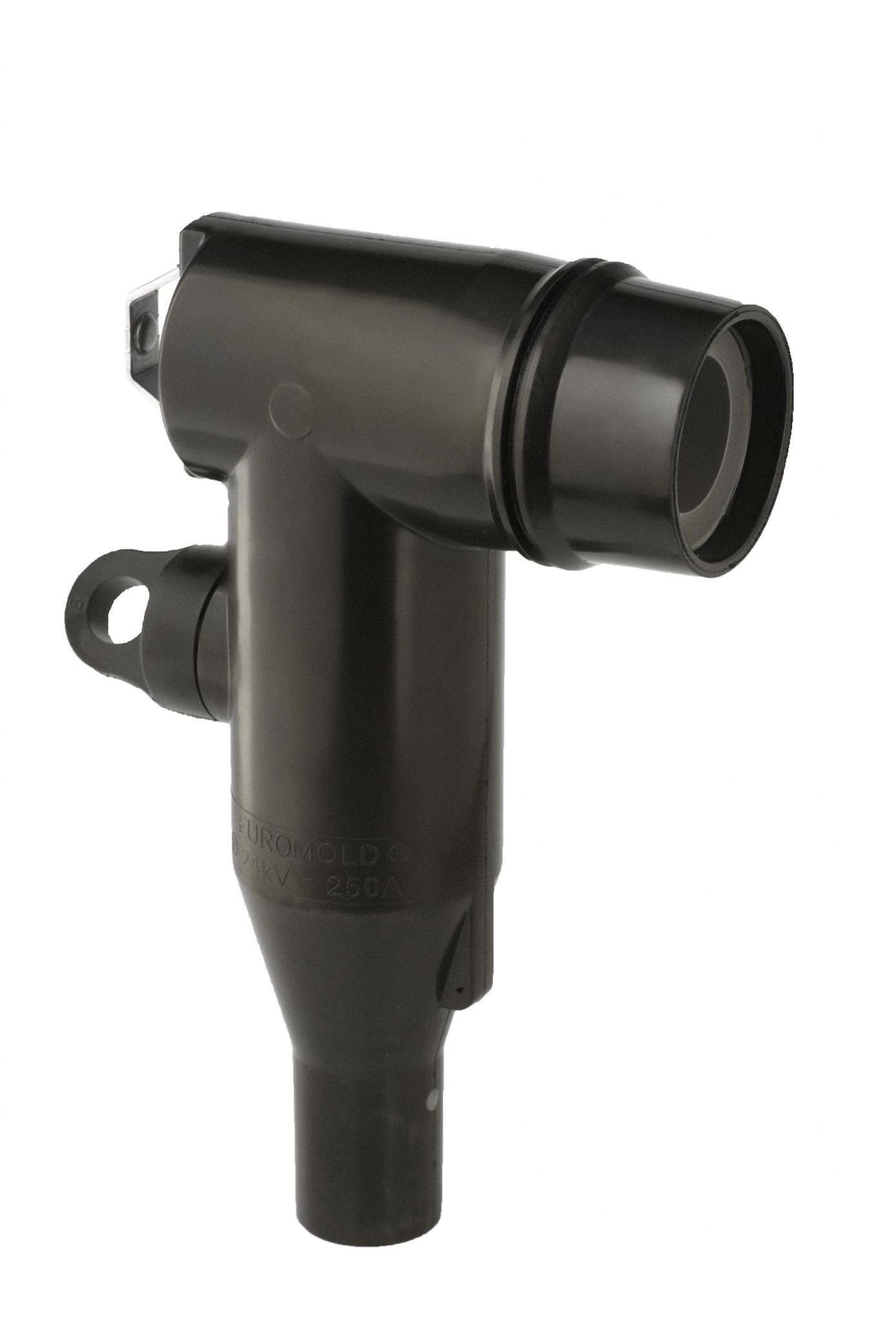

158LR Nexans Separable Connector 12-24kv


SKU: d4784f4d89b8 Category:


158LR Elbow connector is designed for interface A and covers voltages from 12 to 24kv with a maximum conductor size of 95mm2. This separable connector is a dead break elbow and uses a 7.9mm plug in pin to connector to the 250amp bushing. Designed to connect polymeric insulated cables with a copper wire screen but can be used on armoured, copper tape screen cables with the use of  additional accessories, Please contact our sales office for further details.

Technical Characteristics

  • The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
  • Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
