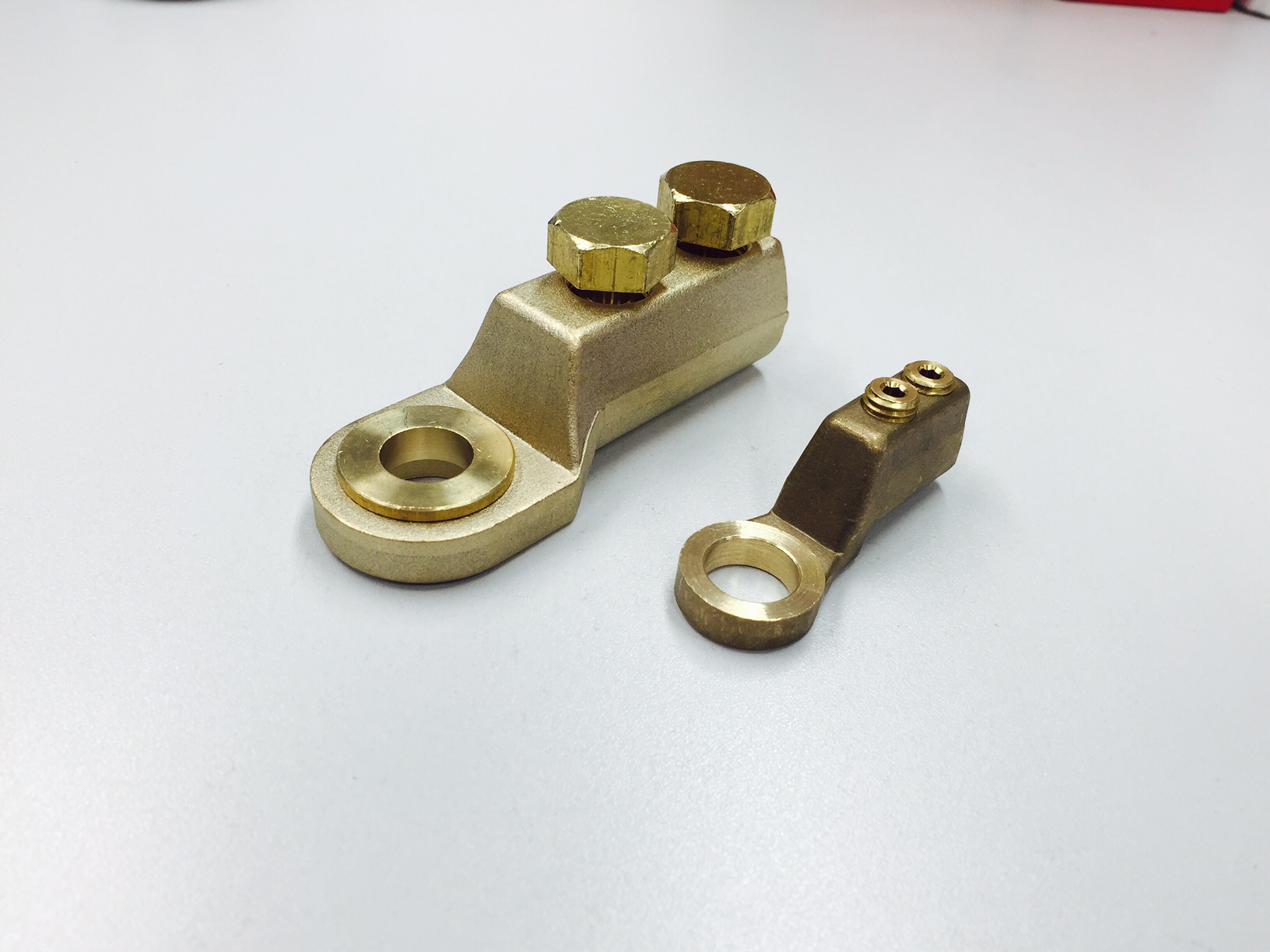

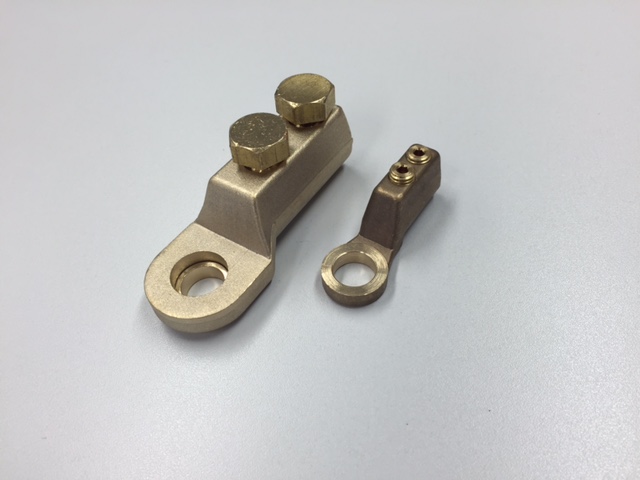

Brass Shear Bolt Lugs (Screen Wires on MV Cables)

Data/Specifications

Part NumberSize Range (Stranded)Size Range (Solid)Hole Size
ML4/12-126-95mm216-120mm212
ML4/12-166-95mm216-120mm216
ML4/13-1635-120mm235-150mm216
ML4/14-126-70mm216-95mm212
ML4/14-166-70mm2116-95mm216
SKU: be1ac5fc7e0c Category:

Description

The Hepworth ML4 range of mechanical lugs are designed for the termination of stranded/solid/circular conductor cores. Also used for the termination of earth screen wires of MV polymeric cables.

The mechanical lugs are manufactured in copper alloy and suitable for jointing either copper or aluminium cored conductor.
