Description
Mechanical cable lug for circular stranded aluminium or copper conductors for all cable voltages up to and including 42kV.

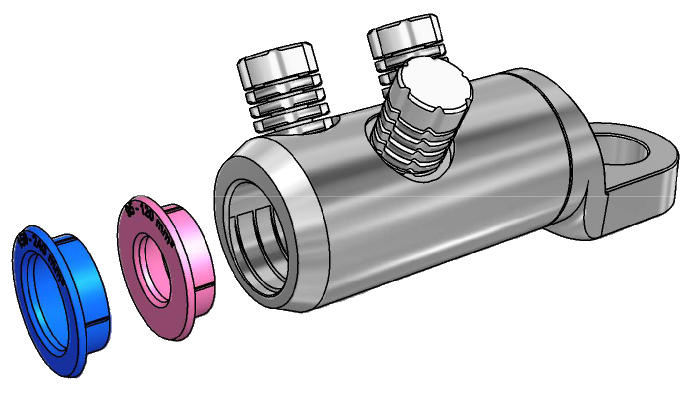

Sicame MV Mechanical Cable Lugs (EUML)
Data/Specifications
| Part Number | Internal Bore | Cable Range (stranded and Solid Circular) | Stud Sizes |
|---|---|---|---|
| EUML0 | 13mm | 16-95mm2 | M12 |
| EUML1 | 16mm | 35-150mm2 | M12 |
| EUML2 | 21mm | 50-240mm2 | M12/M16 |
| EUML2.5 | 26mm | 95-400mm2 | M12/M16/M20 |
| EUML3 | 30mm | 240-500mm2 | M12/M16/M20 |
| EUML8 | 34mm | 400-630mm2 | M12/M16/M20 |
| EUML9 | 43mm | 800-1000mm2 | M16/M20 |
