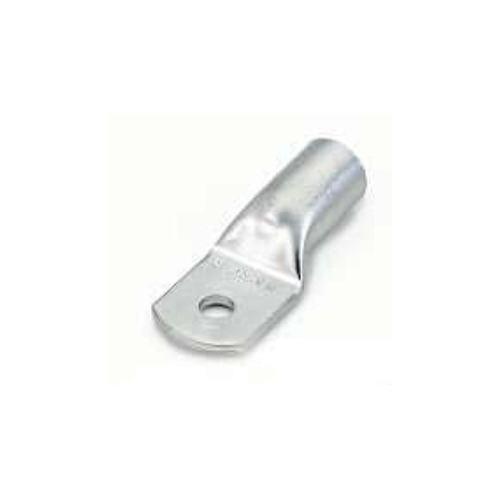

LV Tinned Copper Crimp Lugs

Data/Specifications

Part NumberConductor SizeHole sizes available
L0750.75mm23/4/5mm
L151.5mm23/4/5/6mm
L2.52.5mm23/4/5/6/8mm
L44mm24/5/6/8mm
L66mm24/5/6/8mm
L1010mm24/5/6/8mm
L1616mm25/6/8/10/12mm
L2525mm25/6/8/10/12mm
L3535mm26/8/10/12/14/16mm
L5050mm26/8/10/12/14/16mm
L7070mm26/8/10/12/14/16mm
L9595mm26/8/10/12/14/16/20mm
L120120mm28/10/12/14/16/20mm
L150150mm28/10/12/14/16/20mm
L185185mm210/12/14/16/20mm
L240240mm210/12/14/16/20mm
L300300mm212/14/16/20mm
L400400mm212/14/16/20mm
L500500mm216/20mm
L630630mm216/20mm
SKU: 18ca1958b818 Category:

Description

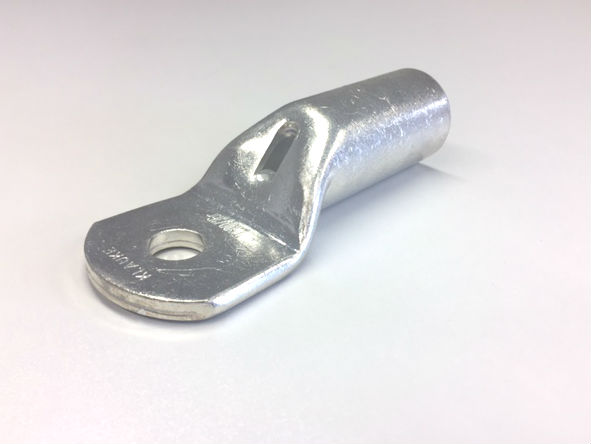

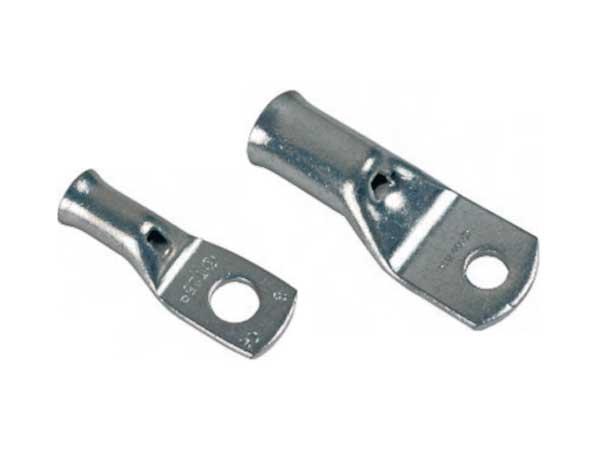

The Klauke L series is a high quality range of cable lugs. With wire sizes from 0.75 to 630mm² and a comprehensive range of fixing hole sizes most variants are covered. We endeavour to hold sufficient stocks here at Cable Jointing Solutions.

  • All cable lugs are annealed to optimise crimping properties
  • Flat contact surface by special pressing technique
  • Chamfered barrel for easy cable insertion
