SHDSS – Stainless Steel Cable Cleat – Sapphire

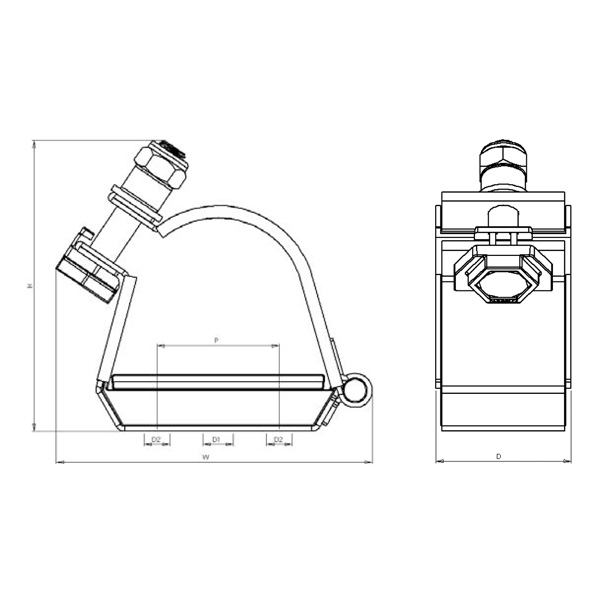

Data/Specifications

Part NumberCable O/D Range (mm)Fixing Hole D1Fixing Hole D2
SHDSS03203832-38mm2 x M101 X M12
SHDSS03804638-46mm2 x M101 X M12
SHDSS04605146-51mm2 x M101 X M12
SHDSS05105851-58mm2 x M101 X M12
SHDSS05807058-70mm2 x M101 X M12
SHDSS07008370-83mm2 x M101 X M12
SHDSS08309783-97mm2 x M101 X M12
SHDSS09610996-109mm2 x M101 X M12
SHDSS106120106-120mm2 x M101 X M12
SHDSS120135120-135mm2 x M101 X M12
SHDSS135150135-150mm2 x M101 X M12
SKU: ba8b5667d2fa Category:

Description

SHDSS – Stainless Steel Cable Cleat – Sapphire

The CMP Products SHDSS Sapphire cable cleat range are metallic cable cleats which have been designed, constructed, and tested in accordance with the International Standard ‘cable cleats for Electrical Installations’ IEC 61914:2009. The SHDSS cable cleat has been designed and tested for high short circuit conditions on cables held in single, parallel / flat formation, to ensure the securing and retention of cables without damage.

  • Third party certification to IEC 61914:2009
  • 16L stainless steel
  •  32 to 150mm in 11 sizes for single / parallel formation
  • Operating temperature -40°C to +60°C
  • Low Smoke & Fume (LSF) liners as standard
  • Combined single (M12) and two bolt (M10) fixing design
