Description

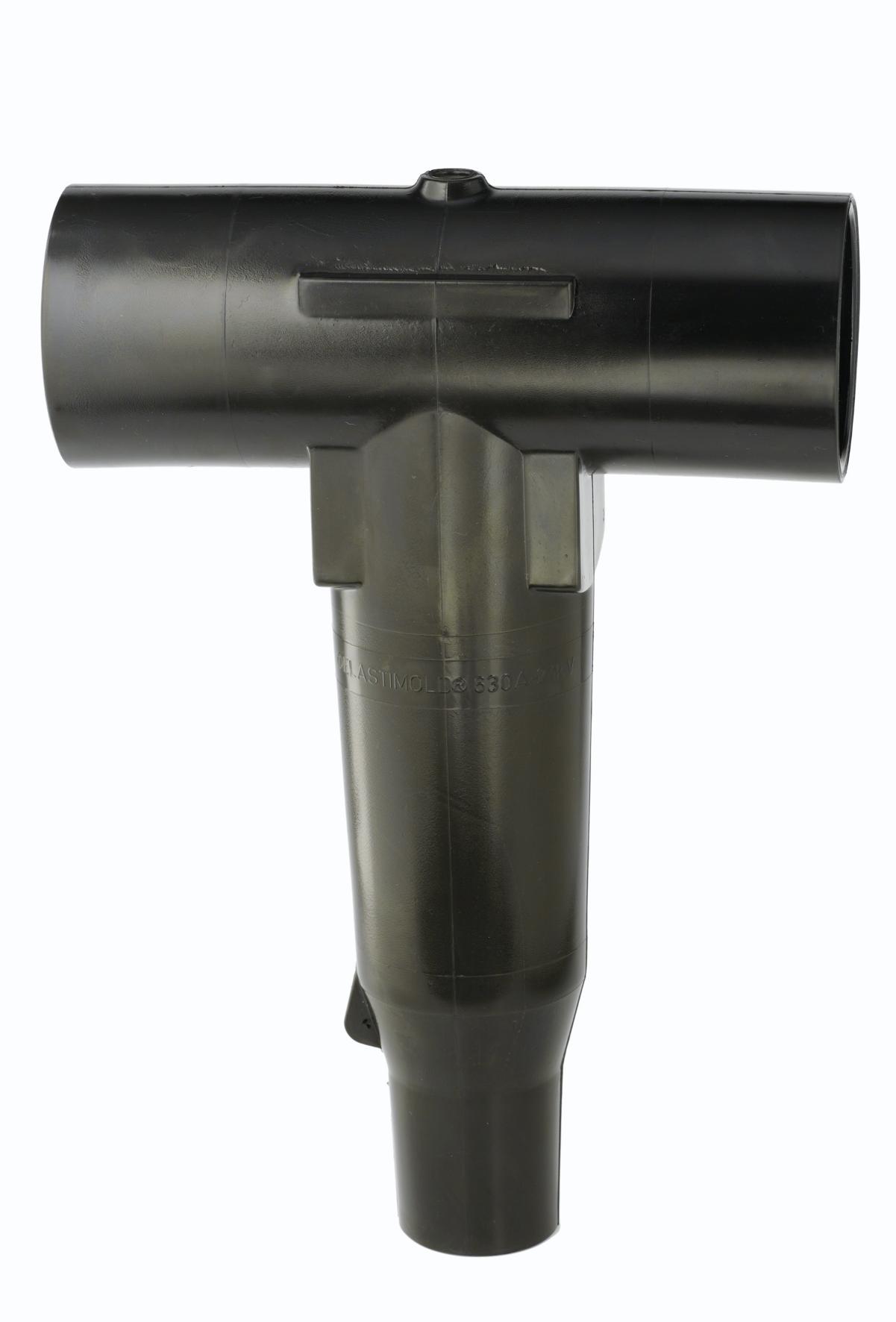

400TB T connector is designed for interface C and covers voltages from 12 to 42kv with a maximum conductor size of 300mm2. This separable connector is symmetrical T elbow and uses a 16mm bolted connection to connector to the 630amp bushing. Designed to connect polymeric insulated cables with a copper wire screen but can be used on armoured, copper tape screen cables with the use of additional accessories. This connector is also suitable for connecting multiple cables per phase with the addition of coupling connectors, for more details please contact our sales office.
Technical Characteristics
- The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
- Type C, 630amp as described by CENELEC.
Please ensure full cable details are known at time of order so correct product selection can be made, Specific requirements can be found on the product data sheet attached.
